Channel steel is divided into ordinary channel steel and light channel steel. The specifications of hot-rolled ordinary channel steel are 5-40#. The carbon content of raw billet of channel steel does not exceed 0.25%, and the finished product is delivered through hot processing, normalizing or hot rolling. Channel steel has the properties of high strength , corrosion resistance , easy processing and plasticity , making it one of the preferred materials for manufacturing mechanical and structural supports.

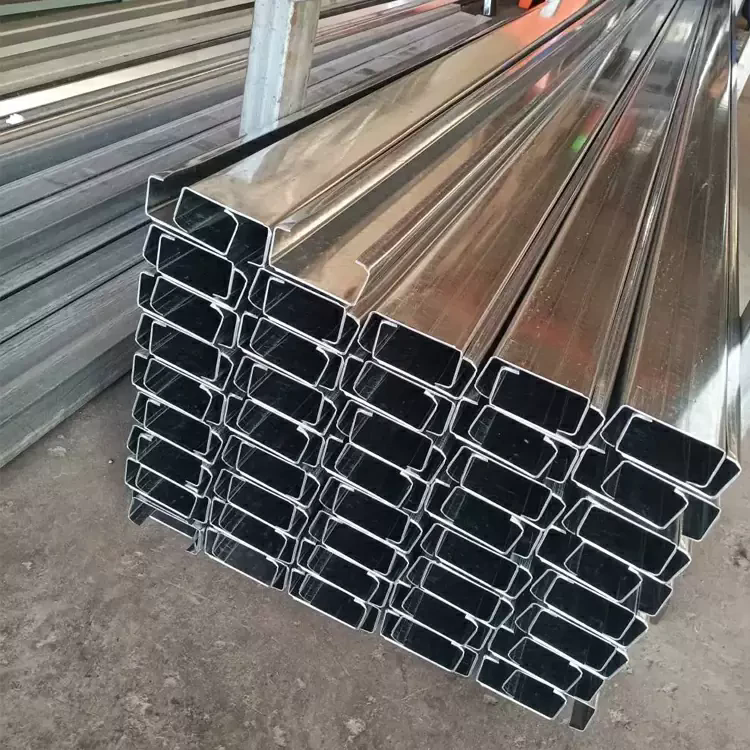

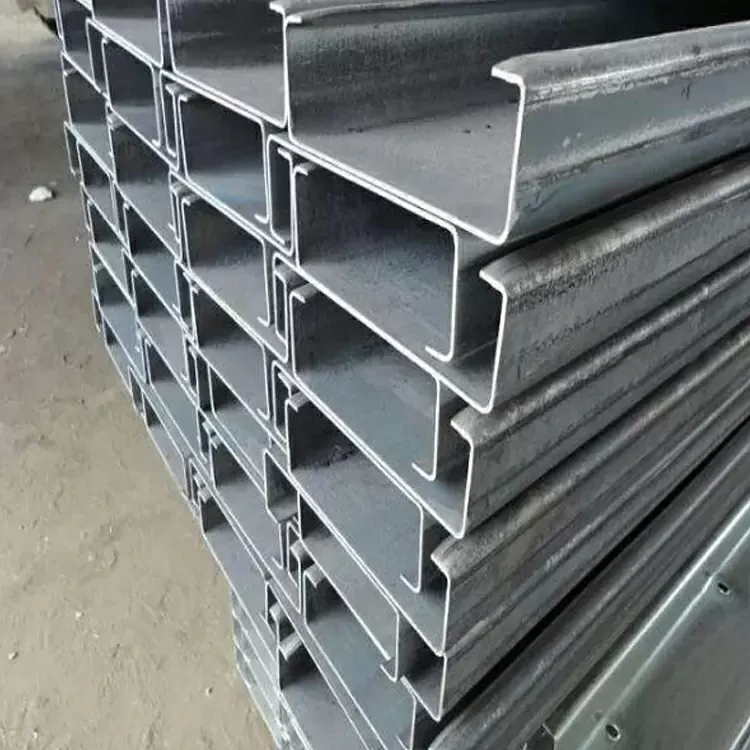

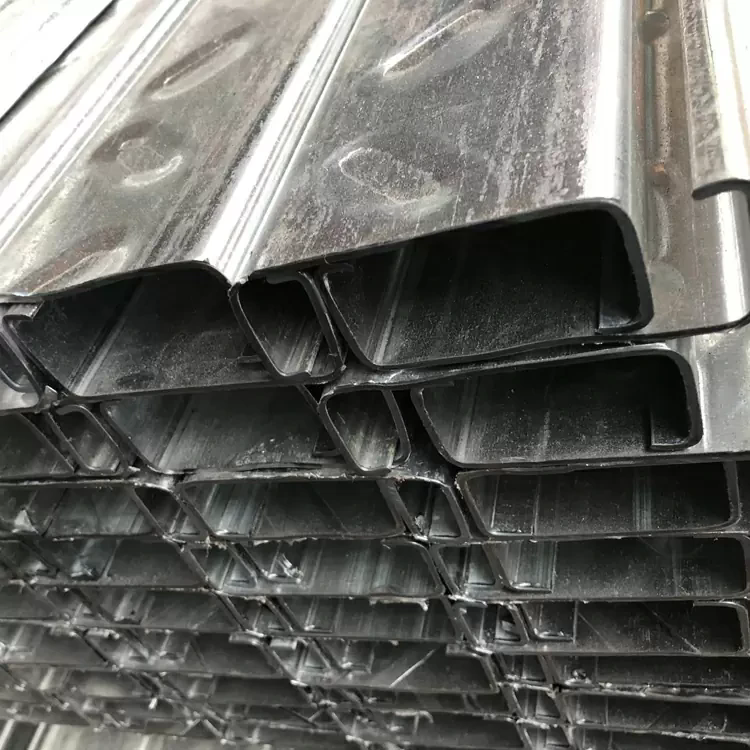

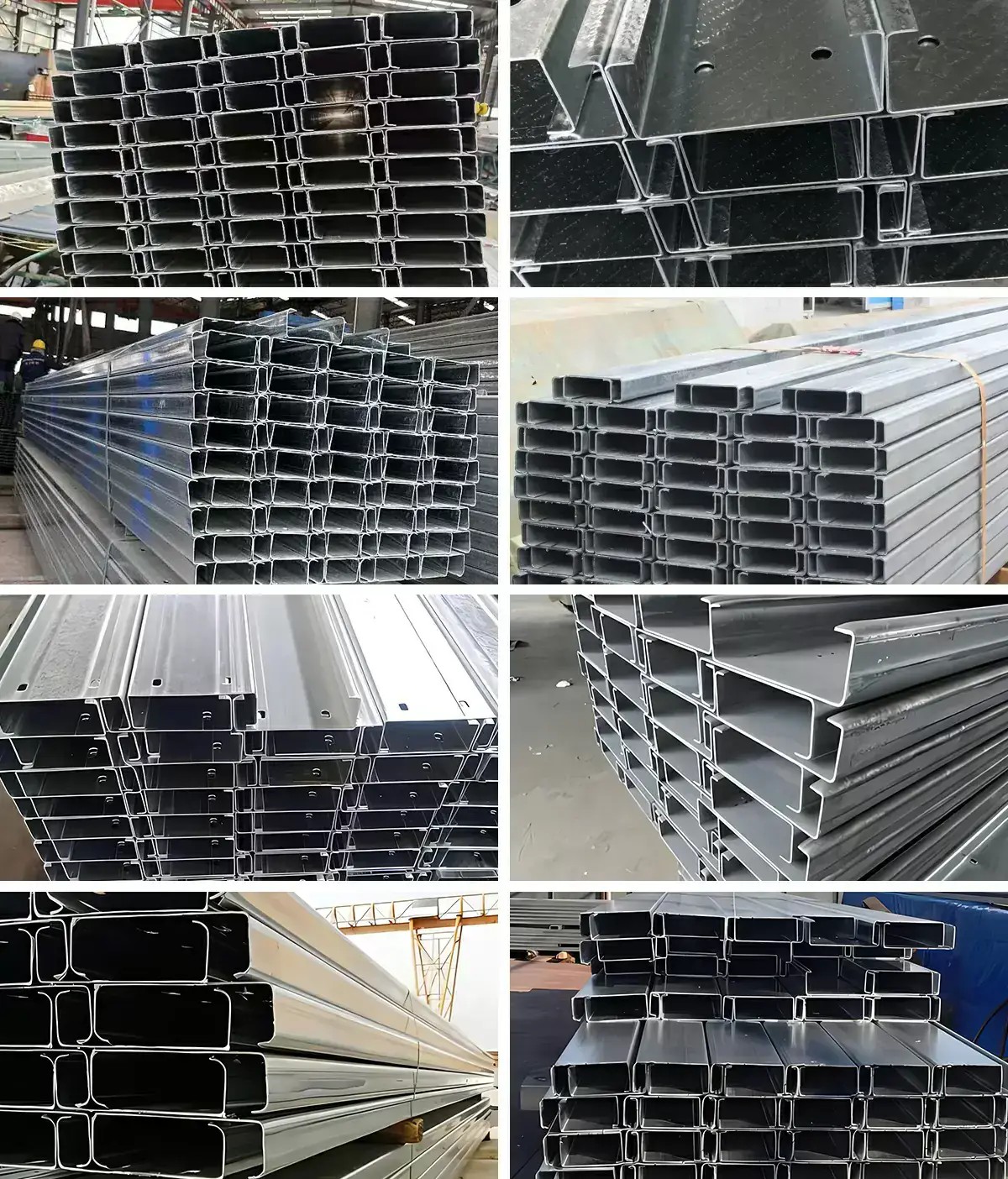

Product Name | Galvanized Steel Channel C-section Steel |
Size | 50*37*5.438kg/m~400*104*71.488 |
Length | 6M/12M,or cut by customer’s requirements |
Other kit | Anti-theft bilt,Nut,washer and so on |
Technique | Cold Drawn/Cold pilfered/Cold rolled/Hot rolled/forge-Can be processed again repeatedly |
Other Processing Service | Hot dipped galvanized,pre-galvanized,color painting,coated,cuttung,bending,punching as long as u could teel us the requirments |
Offer Standards | ASTM A53/ASTM A573/ASTM A283 Gr.D/BS1387-1985/GB/T3091-2001,GB/T13793-92,ISO630/E235B/JIS G3131/JIS G3106 |
Materials | We can offer carbon,alloy,stainless steel |
A36 |
Q235B,Q345B |
S235JR/S235/S355JR/S355 |
SS400/SS440/SM400A/SM400B |
200/300/400 series |
MTC report or any other requested test will be offered together with the shipping document. |
Inspection | Third party inspection service can be offered like ISO,SGS,BV and so on. |
The characteristics of channel steel include its excellent weldability, workability and corrosion resistance. Channel steel can be easily cut, bend, welding and other processing operations, so as to meet the production needs of various complex structures. In addition, the corrosion resistance of the channel steel enables it to maintain a long service life in harsh environments.
Identification | Nominal dimensions | Dimensions for detailing | Cross-section | Nominal weight 1m | Surface |
| h | b | s | t | R | h1 | d | Ø | emin | emax | A | G | AL | AG |
| mm | mm | mm | mm | mm | mm | mm |
| mm | mm | cm2 | kg/m | m2/m | m2/m |
UPE 80 | 80 | 50 | 4,0 | 7,0 | 10 | 66 | 46 | - | - |
| 10,1 | 7,90 | 0,343 | 43,45 |
UPE 100 | 100 | 55 | 4,5 | 7,5 | 10 | 85 | 65 | M12 | 35 | 36 | 12,5 | 9,82 | 0,402 | 41,00 |
UPE 120 | 120 | 60 | 5,0 | 8,0 | 12 | 104 | 80 | M12 | 35 | 41 | 15,4 | 12,1 | 0,460 | 37,98 |
UPE 140 | 140 | 65 | 5,0 | 9,0 | 12 | 122 | 98 | M16 | 35 | 38 | 18,4 | 14,5 | 0,520 | 35,95 |
UPE 160 | 160 | 70 | 5,5 | 9,5 | 12 | 141 | 117 | M16 | 36 | 43 | 21,7 | 17,0 | 0,579 | 34,01 |
UPE 180 | 180 | 75 | 5,5 | 10,5 | 12 | 159 | 135 | M16 | 36 | 48 | 25,1 | 19,7 | 0,639 | 32,40 |
UPE 200 | 200 | 80 | 6,0 | 11,0 | 13 | 178 | 152 | M20 | 46 | 47 | 29,0 | 22,8 | 0,697 | 30,60 |
UPE 220 | 220 | 85 | 6,5 | 12,0 | 13 | 196 | 170 | M22 | 47 | 49 | 33,9 | 26,6 | 0,756 | 28,43 |
UPE 240 | 240 | 90 | 7,0 | 12,5 | 15 | 215 | 185 | M24 | 47 | 51 | 38,5 | 30,2 | 0,813 | 26,89 |
UPE 270 | 270 | 95 | 7,5 | 13,5 | 15 | 243 | 213 | M27 | 48 | 50 | 44,8 | 35,2 | 0,892 | 25,34 |
UPE 300 | 300 | 100 | 9,5 | 15,0 | 15 | 270 | 240 | M27 | 50 | 55 | 56,6 | 44,4 | 0,968 | 21,78 |
UPE 330 | 330 | 105 | 11,0 | 16,0 | 18 | 298 | 262 | M27 | 54 | 60 | 67,8 | 53,2 | 1,043 | 19,60 |
UPE 360 | 360 | 110 | 12,0 | 17,0 | 18 | 326 | 290 | M27 | 55 | 65 | 77,9 | 61,2 | 1,121 | 18,32 |
UPE 400 | 400 | 115 | 13,5 | 18,0 | 18 | 364 | 328 | M27 | 57 | 70 | 91,9 | 72,2 | 1,218 | 16,87 |
